DSG support. Professional testing. Practical repair route.
Freestorm provides testing and repair support for common DSG, S-Tronic and dual-clutch gearbox mechatronic unit faults across a wide range of vehicle makes and models.
If your vehicle has harsh gear changes, flashing PRNDS lights, gearbox warning messages, limp mode, no drive, delayed gear engagement or fault codes linked to hydraulic pressure or gear selection, we can help assess the unit and manage the repair route where possible.
Mechatronic units control gear selection, clutch operation and hydraulic pressure inside the gearbox
The unit is assessed before repair is confirmed
A repair route may avoid unnecessary replacement of the full gearbox or mechatronic assembly.
Typical turnaround from receipt of the unit, depending on the fault and testing requirements
Support with fault codes, part numbers, symptoms and booking

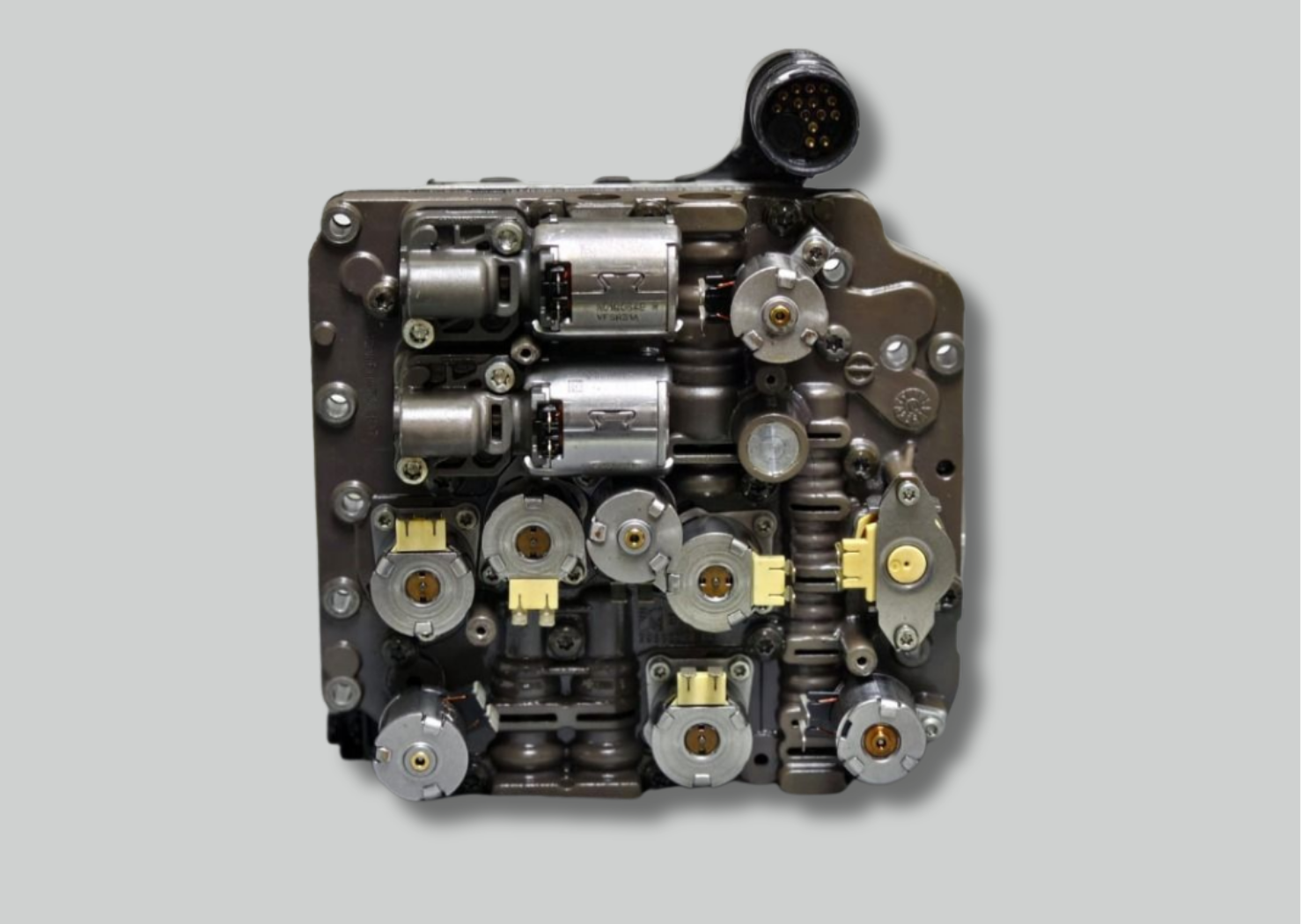

The DSG mechatronic unit is the control centre of a dual-clutch gearbox. It combines electronic control with hydraulic operation to manage gear selection, clutch engagement and gearbox pressure.
In DSG and S-Tronic gearboxes, the mechatronic unit receives information from the vehicle and gearbox sensors, then controls solenoids, hydraulic circuits and clutch operation to select the correct gear. The DSG mechatronic unit is commonly described as the component responsible for driving the dual-clutch system and controlling gear selection.
When the mechatronic unit fails, the vehicle may show gearbox warning lights, harsh shifting, delayed engagement, limp mode, flashing PRNDS display or may not select gears correctly.
A faulty DSG mechatronic unit can affect gear selection, clutch control and gearbox pressure. Depending on the fault, the vehicle may still drive with harsh or delayed shifts, or it may enter limp mode, become stuck in gear, refuse to select drive or show a gearbox malfunction warning.
Because the mechatronic unit works with the clutch pack, gearbox oil pressure, sensors, wiring and transmission control system, the full gearbox fault context should be reviewed before confirming the repair route.
On some DSG systems, the electronic control unit hydraulically controls solenoid valves for gear shifting and clutch actuation, and adapts clutch and gear selector positions during operation

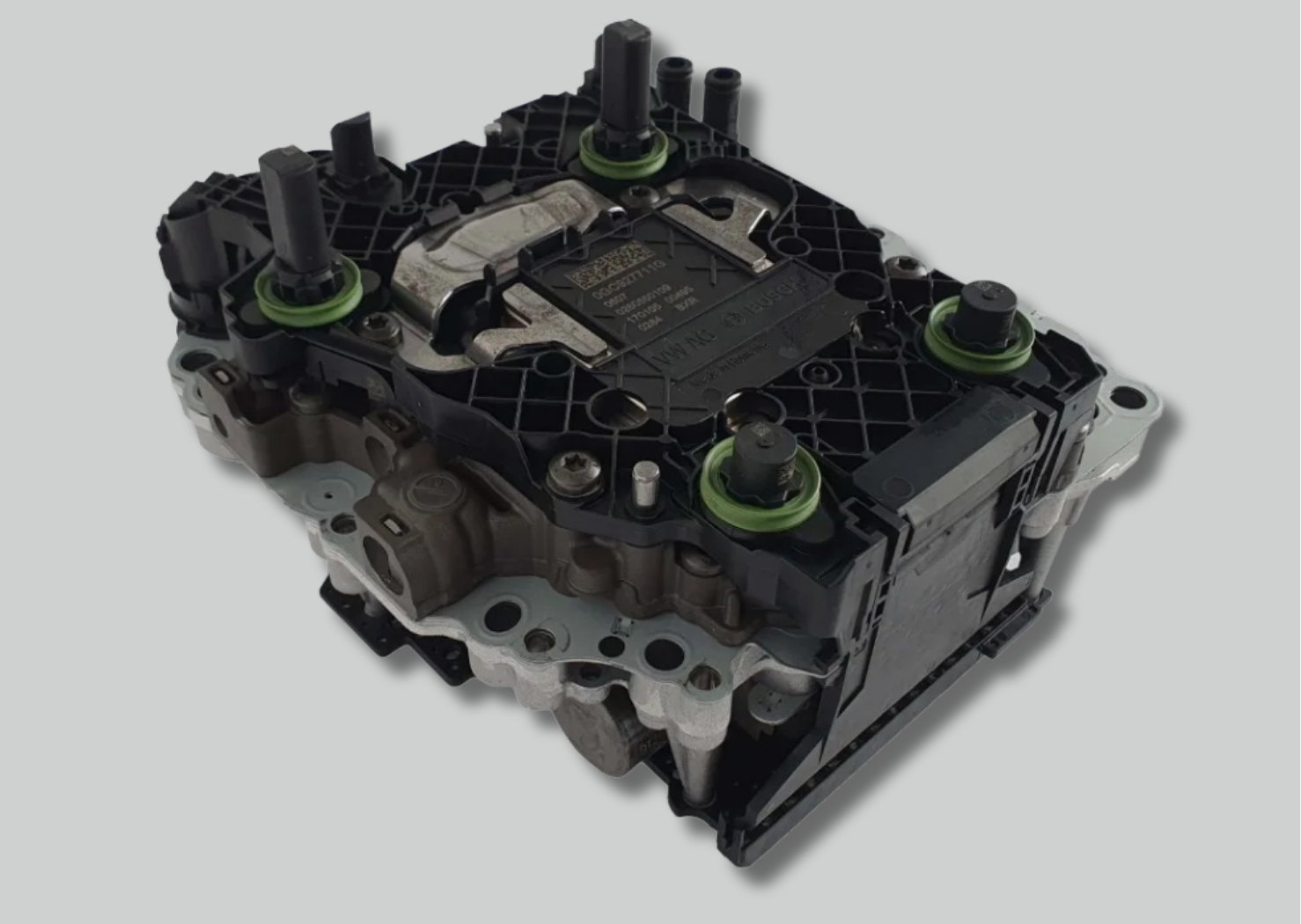

Remanufacturing is a structured industrial process that returns used parts (cores) to reliable working condition through inspection, replacement of worn parts, rebuilding and testing.
Best when:
The original DSG mechatronic unit can be tested and repaired, and the fault is suitable for a repair route.
Benefits:
Best when:
The original mechatronic unit is severely damaged, contaminated, burned, physically broken, heavily corroded or cannot be repaired safely.
Benefits:
Repair is often the most practical first route, but it depends on the condition of the unit and the fault found during testing.
DSG mechatronic faults can appear in several ways. The exact cause may be the mechatronic unit, clutch pack, gearbox oil, wiring, pressure sensor, solenoids, selector mechanism or internal gearbox components, so proper diagnosis is required.
Gearbox warning light or message
Flashing PRNDS display
Harsh or jerky gear changes
Delayed engagement of Drive or Reverse
No drive / no reverse
Limp mode
Drops out of gear
Fault returns after clearing
Fault codes vary by manufacturer, gearbox type and diagnostic tool. The examples below are common references only and should not be treated as a final diagnosis without testing.
Often linked to DSG mechatronic hydraulic pressure problems, commonly seen on some 7-speed DSG applications.
May indicate pressure build-up problems inside the mechatronic or hydraulic circuit.
Can appear with DSG pressure regulation, clutch control or gear selection issues.
May indicate gear selection or actuator control issues.
The vehicle may not be able to communicate correctly with the gearbox control module.
Some DSG systems may require basic settings or adaptation after repair, replacement or certain gearbox work. Ross-Tech notes specific basic setting prerequisites for 7-speed DSG/0AM systems, including no relevant fault codes and correct transmission oil temperature.
Before sending the unit, gather as much information as possible. This helps us confirm the correct repair route and avoid delays.
Programming and adaptation requirements depend on the vehicle, gearbox type, fault and repair carried out. In many cases, repairing the original mechatronic unit can help retain the original gearbox configuration and may reduce the risk of compatibility issues associated with fitting a used or new replacement unit.
After refitting, some DSG systems may require basic settings, clutch adaptation, gear selector adaptation or diagnostic checks before the vehicle is returned to normal use
DSG mechatronic units are complex electro-hydraulic gearbox control components, so every repair route must be handled carefully.
Typical repair route: 5-10 working days from receipt of unit.
Typical turnaround is approximately 5-10 working days from receipt of the unit, depending on the fault, testing requirements, repair complexity, parts availability and courier times.
We will keep you updated if additional time is required.
Complete the booking form with your vehicle, part number and fault details.
We confirm the next steps and provide delivery instructions. Pack the unit securely and include your booking details.
The unit is tested and repaired where possible. If the fault or condition means repair is not suitable, we will advise.
Your unit is returned with the relevant repair information and warranty details where applicable.
Freestorm can help with ABS faults across many common vehicle makes and models.
Audi
BMW
Ford
Mercedes-Benz
Volkswagen
Peugeot
Chery
Toyota
Volvo
Typical turnaround is approximately 5-10 working days from receipt of the unit, depending on the fault and testing requirements.
Usually no. In most cases, the mechatronic unit is removed and sent separately. However, this depends on the vehicle and gearbox type. Send us your part number or a photo of the unit and we will confirm what is required.
We can often advise based on symptoms, fault codes and part numbers, but final confirmation may require testing.
Warranty terms depend on the part type and repair carried out. We will confirm the applicable warranty before or after the repair assessment.
Vehicle make, model, year, registration/VIN if available, part number, fault codes, symptoms and any diagnostic report.
Yes. A mechatronic fault can prevent Drive or Reverse from engaging, or cause the vehicle to drop out of gear.
No. Harsh shifting may also be caused by clutch wear, gearbox oil condition, adaptation issues, wiring faults, internal mechanical wear or other gearbox-related problems.
This depends on the vehicle and gearbox type. Repairing the original unit may help retain the original configuration, but some vehicles may still require basic settings, adaptation or diagnostic setup after refitting.
Send us your vehicle details, part number, fault codes or symptoms and we will help identify whether DSG mechatronic testing and repair is the right route.
