Engine control support. Professional testing. Practical repair route.
Freestorm provides testing and repair support for common engine ECU, engine control module and engine management unit faults across a wide range of vehicle makes and models.
If your vehicle has an engine management light, misfire, non-start issue, cutting out, injector fault, throttle fault, limp mode or no communication with the engine ECU, we can help assess the unit and manage the repair route where possible.
Central controller of the engine management system.
The unit is assessed before repair is confirmed
A repair route may avoid unnecessary replacement of the full ECU.
Typical turnaround from receipt of the unit, depending on the fault and testing requirements
Support with fault codes, part numbers, symptoms and booking.
The engine ECU controls key engine functions. If it fails, the vehicle may misfire, cut out, enter limp mode, show an engine warning light or fail to start.

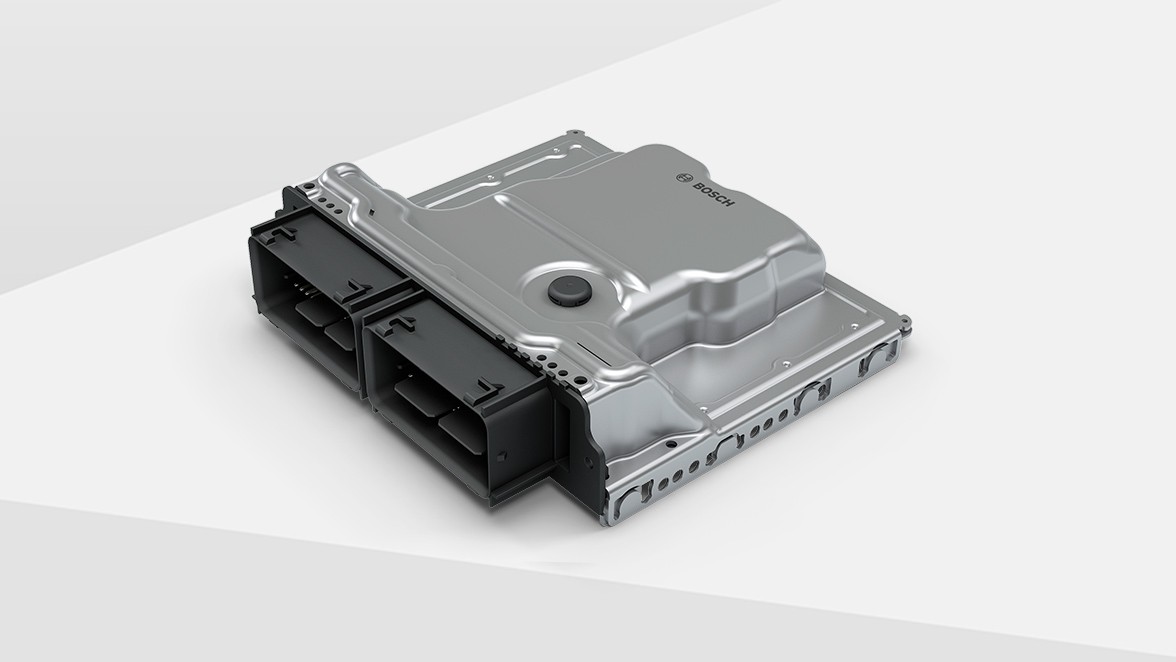

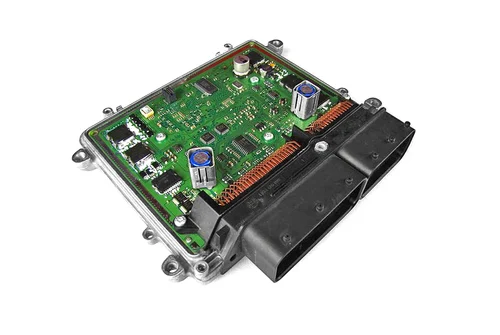

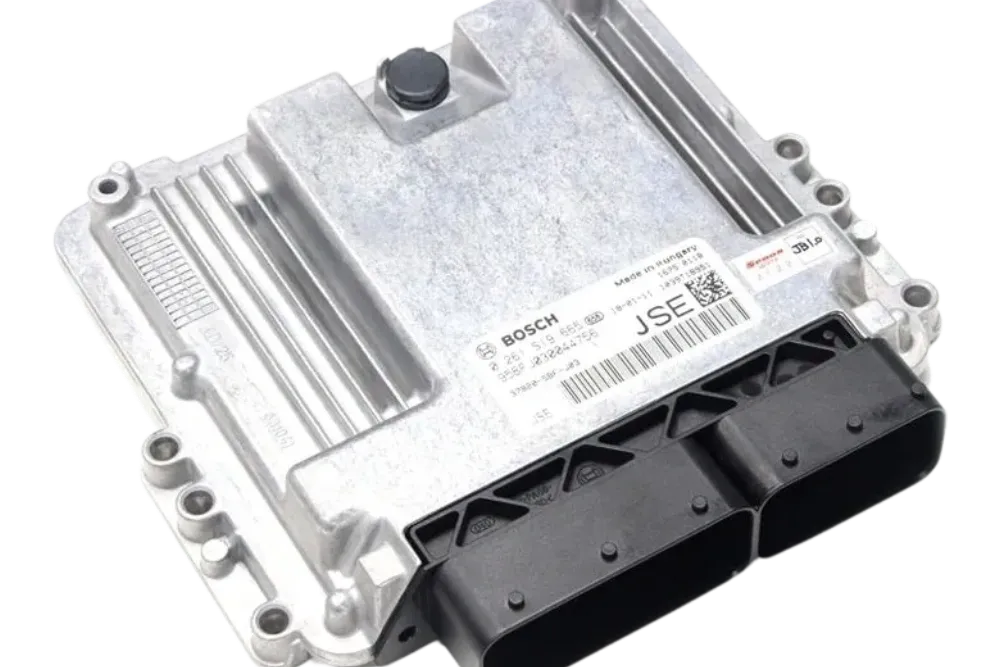

The engine ECU, also known as the engine control unit, engine control module or engine management ECU, is the electronic control unit responsible for managing key engine functions.
It receives information from sensors around the vehicle and uses that information to control engine operation. Depending on the vehicle, the ECU may control or monitor fuel injection, ignition timing, air intake, throttle control, boost control, emissions systems, diagnostics and engine protection functions.
Bosch describes the electronic engine control unit as the “central controller” of the engine management system, controlling areas such as fuel supply, air management, fuel injection and ignition.
When the engine ECU fails, the vehicle may misfire, cut out, enter limp mode, refuse to start, show injector or ignition faults, or fail to communicate with diagnostic equipment.
A faulty engine ECU can affect how the engine starts, runs and responds. Depending on the fault, the vehicle may still drive with poor performance, or it may cut out, enter limp mode or fail to start completely.
Because the ECU works with many other systems, similar symptoms can also be caused by wiring, sensors, injectors, ignition coils, throttle bodies, immobiliser issues, fuel supply faults, battery voltage problems or software / coding issues.
Remanufacturing is a structured industrial process that returns used parts (cores) to reliable working condition through inspection, replacement of worn parts, rebuilding and testing.
Best when:
The original engine ECU can be tested and repaired, and the fault is suitable for a repair route.
Benefits:
Best when:
The original ECU is severely damaged, burned, heavily corroded, physically broken, water-damaged beyond repair or cannot be repaired safely.
Benefits:
Repair is often the most practical first route, but it depends on the condition of the ECU and the fault found during testing. If the ECU is too damaged to repair, we will advise on the next step.
Engine ECU faults can appear in several ways. The exact cause may be the ECU, wiring, sensors, injectors, ignition coils, throttle body, immobiliser, fuel system or software, so proper diagnosis is required.
The check engine light may stay on or return after fault codes are cleared
The engine may misfire on one or more cylinders, run unevenly or feel unstable at idle
The engine may crank but fail to start, or in some cases may not crank depending on the system fault
The vehicle may cut out while driving or fail to restart after cutting out
The ECU may limit engine power to protect the vehicle when it detects a serious fault
Diagnostic equipment may not communicate with the engine control unit
Fault codes may point to injector circuits, ignition coil circuits or cylinder-specific misfires
The vehicle may have poor throttle response, limited acceleration or throttle-related fault codes
Fault codes vary by manufacturer, model, ECU type and diagnostic tool. The examples below are common references only and should not be treated as a final diagnosis without testing.
May indicate an internal ECU memory or control module fault.
Often linked to internal engine ECU or processor-related failure. ECU Testing lists Volkswagen P0606 as one of its engine ECU fault examples.
May indicate ECU internal performance or control module operation issues.
Can be linked to injector control faults inside the ECU or related wiring / injector issues.
Can appear with certain ECU or injector control faults. ECU Testing lists Continental VD56.1 ECU issues causing P0612 on some Stellantis applications.
May indicate ECU reference voltage, wiring, sensor or internal ECU supply issues. ECU Testing lists Volkswagen ECU faults causing P0651 among its examples.
May indicate injector circuit issues, wiring faults or ECU injector driver failure.
The vehicle cannot communicate correctly with the engine ECU.
Before sending the unit, gather as much information as possible. This helps us confirm the correct repair route and avoid delays.
Programming requirements depend on the vehicle, ECU type and repair carried out. In many cases, repairing the vehicle’s original ECU can help retain the original coding, immobiliser data and vehicle configuration. This may avoid the additional coding, cloning, VIN programming or immobiliser matching that is often required when fitting a brand-new or used replacement ECU. Original unit repaired where possible = usually simpler refit route. Replacement ECUs may require coding, cloning, immobiliser matching, VIN programming or dealer-level diagnostic procedures.
Engine ECUs are complex electronic control units, so every repair route must be handled carefully.
Typical repair route: 5-10 working days from receipt of unit.
Typical turnaround is approximately 5-10 working days from receipt of the unit, depending on the fault, testing requirements, repair complexity, parts availability and courier times.
We will keep you updated if additional time is required.
Complete the booking form with your vehicle, part number and fault details.
We confirm the next steps and provide delivery instructions. Pack the unit securely and include your booking details.
The unit is tested and repaired where possible. If the fault or condition means repair is not suitable, we will advise.
Your unit is returned with the relevant repair information and warranty details where applicable.
Freestorm can help with ABS faults across many common vehicle makes and models.
Audi
BMW
Ford
Mercedes-Benz
Volkswagen
Peugeot
Chery
Toyota
Volvo
Typical turnaround is approximately 5-10 working days from receipt of the unit, depending on the fault and testing requirements.
This depends on the vehicle and ECU type. In most cases, the engine ECU is removed and sent separately. Send us a photo of the ECU label or part number and we will confirm what is required.
We can often advise based on symptoms, fault codes and part numbers, but final confirmation may require testing.
Warranty terms depend on the part type and repair carried out. We will confirm the applicable warranty before or after the repair assessment.
Vehicle make, model, year, registration/VIN if available, part number, fault codes, symptoms and any diagnostic report.
Yes. A faulty engine ECU can cause a crank no-start, intermittent non-start, cutting out or complete loss of engine control, depending on the vehicle and fault type.
No. Misfires can also be caused by spark plugs, ignition coils, injectors, compression issues, wiring, fuel supply or sensor faults. ECU testing is required before confirming the ECU as the cause.
This depends on the vehicle and repair route. Repairing the original ECU may help retain the original coding and immobiliser data, but some vehicles may still require diagnostic checks, adaptations or coding after refitting.
Send us your vehicle details, ECU part number, fault codes or symptoms and we will help identify whether engine ECU testing and repair is the right route.
